The 2008 GMC Yukon remains a staple of American SUV engineering, prized for its longevity and utility. However, as vehicle technology evolves, some of the simpler conveniences—like the integrated HomeLink system—can become a source of frustration for second-hand owners or those who have recently replaced their garage door hardware. Whether you are dealing with a rolling code system or an older fixed-code motor, the process of the 08 Yukon program garage door opener functions is straightforward once you understand the handshake between the vehicle and the receiver.
Integrating your garage door controls directly into your Yukon’s overhead console eliminates the need for clipped-on remotes that can be lost, stolen, or clutter the interior. This guide provides a technical walkthrough of the synchronization process, troubleshooting common interference issues, and ensuring your HomeLink system remains secure.
Understanding the HomeLink System in the 2008 Yukon

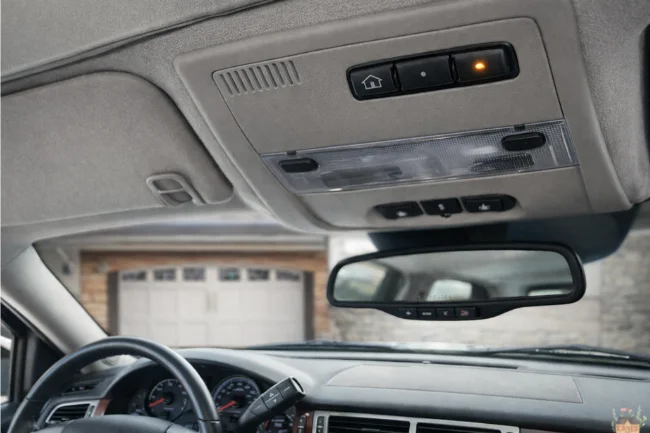

The 2008 Yukon utilizes the HomeLink Wireless Control System. This system is integrated into the overhead console, usually featuring three buttons and a small LED indicator. HomeLink is designed to consolidate the functions of up to three radio-frequency (RF) devices, including garage doors, motorized gates, and home lighting.
To successfully program the system, it is necessary to identify which type of garage door opener you own. Most units manufactured after 1996 use “Rolling Code” technology, which changes the security code every time the button is pressed. Older units use “Fixed Code” technology, which relies on a set of DIP switches. The programming steps differ significantly between these two.
Pre-Programming Checklist
Before attempting to sync the vehicle, ensure the following conditions are met to avoid signal interruption:
-
Battery Health: Ensure your handheld garage door remote has a fresh battery. A weak signal from the remote is the leading cause of programming failure.
-
Clearance: Park the Yukon outside the garage. This prevents the door from accidentally hitting the vehicle during the testing phase and ensures a clear line of sight for the RF signal.
-
Ignition Status: Turn the ignition to the “On” or “Run” position (without starting the engine) to provide consistent power to the HomeLink module.
Comparison: Rolling Code vs. Fixed Code Systems
Step-by-Step: Programming the 08 Yukon Garage Door Opener
The following steps apply to the standard HomeLink configuration found in the 2008 GMC Yukon and Yukon XL models.
Step 1: Clearing Existing Memory
If you have just purchased the vehicle, there may be codes stored from the previous owner. It is best to start with a clean slate.
-
Press and hold the two outer HomeLink buttons simultaneously.
-
Continue holding for approximately 20 seconds.
-
Release the buttons only when the indicator light begins to flash rapidly.
-
Note: Do not perform this step when adding a second or third device, as it will erase the first programmed button.
Step 2: Training the HomeLink Button
-

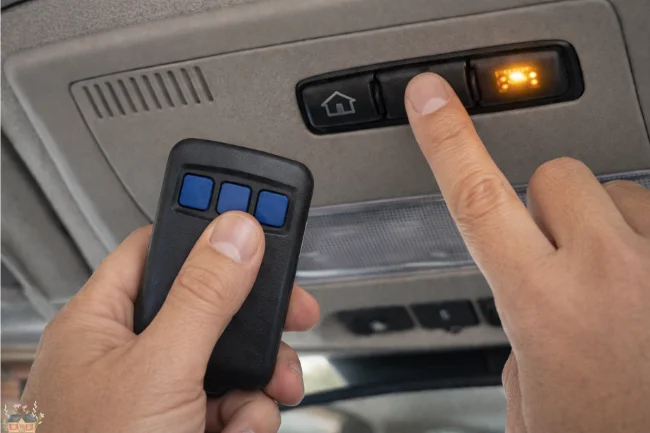

Hold your handheld garage door transmitter 1 to 3 inches away from the HomeLink buttons in the Yukon.
-
Simultaneously press and hold both the desired HomeLink button and the button on your handheld remote.
-
Watch the indicator light on the overhead console. It will flash slowly at first, then change to a rapid flash.
-
Once the light flashes rapidly, release both buttons. The HomeLink system has now “learned” the frequency.
Step 3: Determining the Next Phase
Now, test the HomeLink button you just programmed.
-
If the indicator light is constant: You have a fixed-code system. Your programming is complete.
-
If the indicator light flashes rapidly for two seconds and then turns solid: You have a rolling code system. Proceed to Step 4.
Step 4: Synchronizing with the Garage Door Motor
To finish the 08 Yukon program garage door opener process for a rolling code unit, you must introduce the vehicle to the motor located on the garage ceiling.
-
Locate the “Learn” or “Smart” button on the back or side of the garage door opener motor. It is often near the hanging antenna wire and may be colored red, green, yellow, or purple.
-
Press and release the “Learn” button. You usually have a 30-second window to complete the next action.
-
Return to the Yukon. Press and hold the programmed HomeLink button for two seconds, then release it.
-
Repeat the “Press, hold for two seconds, release” sequence up to three times.
-
The garage door should now activate, signaling that the synchronization is successful.
Read Also: 3-Car Garage Dimensions: Sizes, Layouts & Planning Tips

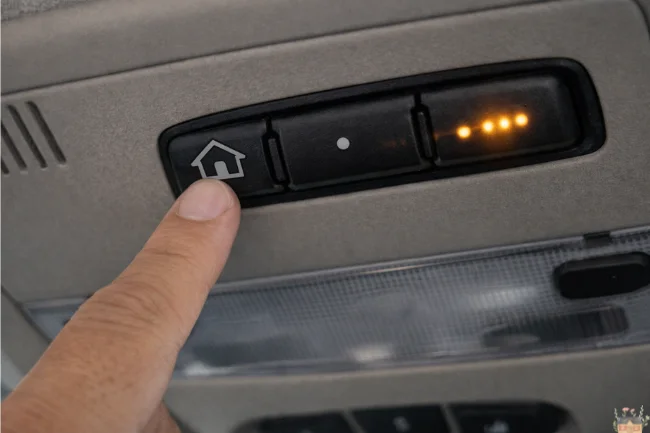

Troubleshooting Common Programming Issues
Even with the correct steps, hardware discrepancies can occasionally interfere with the pairing process.
The “Canadian” or “Gate” Method
Some garage door openers and many gate systems “time out” during the training phase. If the indicator light in your Yukon never switches from a slow flash to a rapid flash during Step 2, try the following:
-
While holding the HomeLink button, press and release the handheld remote button every two seconds.
-
Continue this “cycling” until the HomeLink indicator light transitions to a rapid flash.
Signal Interference
The 2008 Yukon’s overhead console is shielded by the vehicle’s metal roof. If the range is poor, ensure that the garage door opener’s antenna wire is hanging straight down and is not wrapped around the motor housing. Additionally, certain LED light bulbs installed in the garage motor can emit RF interference that “jams” the signal from the vehicle. If you encounter issues, try unscrewing the bulbs in the garage motor temporarily to see if connectivity improves.
Bridge Requirements for Modern Openers
The 2008 Yukon uses HomeLink Version 3 or 4. Modern garage door openers (Security+ 2.0, often with yellow Learn buttons) manufactured after 2011 may operate on a frequency that is not natively compatible with older vehicle modules. In this scenario, you may need a “HomeLink Repeater” or “Bridge Kit.” This device plugs into a wall outlet in the garage, receives the signal from your Yukon, and converts it into a signal the modern opener can understand.
Read Also: LiftMaster Garage Door Opener Manual Guide
Benefits of Integrated Vehicle Controls
Utilizing the built-in system in your Yukon offers several advantages over traditional remotes:
-
Security: Unlike a remote clipped to a visor, the HomeLink system typically requires the ignition to be in the “Accessory” or “On” position to function. If a vehicle is parked in a driveway, a thief cannot simply smash a window and open the garage.
-
Aesthetics: It maintains the clean, factory look of the Yukon’s interior.
-
Reliability: The system is powered by the vehicle’s electrical system, meaning you never have to worry about a dead remote battery when arriving home in inclement weather.
Maintenance and Security Tips
When it comes time to sell your 2008 Yukon or if the vehicle is being serviced for an extended period, remember to reset the system. As outlined in the clearing memory section, holding the two outer buttons for 20 seconds is the standard way to wipe all programmed codes. This ensures that the next owner or a valet does not have access to your home.
Additionally, periodically check the tracks and sensors of your garage door. If the door begins to close and then reverses while using the Yukon’s button, it is rarely a vehicle-side issue; rather, it is usually a sign that the safety “eye” sensors are misaligned or the door’s force settings need adjustment.
Frequently Asked Questions
How do I know if my garage door uses a rolling code?
If your garage door opener was manufactured after 1996, it almost certainly uses rolling code technology. A visual confirmation can be made by looking at the motor unit on the ceiling; if there is a “Learn” button, it is a rolling code system. If there are small dip-switches (usually 8 to 12 in a row) on the motor and the remote, it is a fixed-code system.
Can I program my 08 Yukon to open my community gate?
Yes, the process is similar to programming a garage door. However, community gates often require the “cycling” method mentioned in the troubleshooting section because they are designed to prevent continuous signal transmission for security reasons. You may also need to contact your HOA if the gate system requires a specific “Learn” trigger at the gate controller itself.
Why won’t my 2008 Yukon recognize my new LiftMaster or Chamberlain opener?
If your new opener has a yellow antenna and a yellow “Learn” button, it likely uses Security+ 2.0 technology. The 2008 Yukon’s HomeLink hardware predates this technology. To bridge the gap, you will need to purchase a HomeLink Compatibility Bridge, which acts as a translator between the old vehicle signal and the new motor frequency.
Does clearing the HomeLink memory affect my remote start or key fob?
No. The HomeLink system is a standalone RF transmitter/receiver module located in the overhead console. Erasing the garage door codes will have no impact on your Yukon’s keyless entry, remote start, or anti-theft systems, as those operate on different frequencies and modules.
How many different doors can I program to my Yukon?
The 2008 Yukon HomeLink console features three buttons, allowing you to program up to three separate devices. These can be a mix of rolling code garage doors, fixed-code gates, and even compatible home automation lighting modules.
Summary of Key Takeaways
Programming the 08 Yukon program garage door opener involves a two-part handshake: first, teaching the car the frequency from a handheld remote, and second, syncing the car to the garage motor’s “Learn” function. While modern openers may require a bridge kit, most standard units from the era are fully compatible. By following the “Press, Hold, Release” sequence and ensuring your vehicle has a clear line of sight to the motor, you can enjoy the seamless convenience of integrated home access.
If you have followed these steps and the indicator light fails to respond as described, the next step would be to verify the HomeLink module’s fuse or consult a professional to test the overhead console’s wiring.
