A 24V solar panel diagram with converter, charger, and inverter diagram maps out how photovoltaic panels, a charge controller, battery bank, DC-DC converter, and inverter connect to form a complete off-grid or hybrid power system. Understanding this wiring layout helps homeowners, RV enthusiasts, and electricians size components correctly, avoid dangerous mistakes, and get the most out of their solar investment.
Why a 24V Solar Panel Diagram Differs From a 12V Setup
Most small residential and mobile solar setups run at either 12V or 24V. The 24V solar system diagram has become the preferred standard for systems producing more than 400 watts because it cuts current in half compared to an equivalent 12V setup. Lower current means thinner, less expensive wiring and significantly reduced resistive losses across long cable runs.
A 24V configuration is also more compatible with mid-range inverters (1,000–5,000W), which are the workhorses of off-grid cabins, backup power arrays, and van conversions. If you are planning a system that will run a refrigerator, power tools, or a small air conditioner, a 24V solar panel diagram with converter, charger, and inverter diagram is usually the right starting framework.

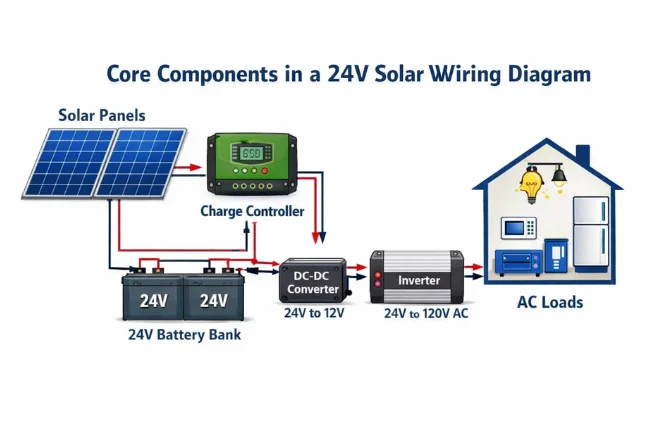

Core Components in a 24V Solar Wiring Diagram
Before tracing the wiring path in a 24V solar panel diagram with inverter and charger, it helps to understand what each component does and where it sits in the circuit.
Solar Panels (PV Array) in the 24V Diagram
Panels are wired in series, parallel, or a series-parallel combination depending on the charge controller’s voltage and current ratings. For a 24V battery bank, panels are typically wired to produce an open-circuit voltage (Voc) between 30V and 100V, depending on whether a PWM or MPPT controller is used.
Charge Controller: The Regulator in Your Solar Inverter Diagram
The charge controller sits between the panels and the battery bank in the solar panel diagram, with the charger and inverter. Its job is to regulate the voltage and current flowing into the batteries so they charge efficiently without overcharging. Two types are common:
- PWM (Pulse Width Modulation): Less expensive, works best when the panel voltage closely matches battery voltage.
- MPPT (Maximum Power Point Tracking): More efficient, accepts a wide range of panel voltages and steps them down to the battery voltage while extracting maximum power.
For a 24V system, an MPPT controller is strongly recommended because it can accept higher-voltage panel strings and boost overall energy harvest by 15–30%.
Battery Bank Wiring in a 24V Solar System Diagram
In a 24V solar wiring diagram, batteries are typically wired in series pairs (two 12V batteries) or as dedicated 24V lithium packs. Lead-acid, AGM, gel, and LiFePO4 chemistries are all compatible, though LiFePO4 has become increasingly popular for its depth of discharge and long cycle life.
DC-DC Converter Role in the 24V Inverter Wiring Diagram
A DC-DC converter (also called a buck or boost converter) steps the battery’s 24V DC down to 12V DC for loads like lighting, fans, USB chargers, and 12V appliances. This is an often-overlooked component in a 24V solar panel diagram with converter, charger, and inverter diagram, but it is critical for mixed-voltage systems where some devices operate at 12V while the battery bank runs at 24V.
Inverter: Converting DC to AC in Your Solar Panel Diagram
The inverter converts 24V DC from the battery bank into 120V AC (standard US household current). Inverters are rated by continuous wattage output and come in two waveform types:
- Modified sine wave: Affordable, works with most resistive loads such as heaters and incandescent lights.
- Pure sine wave: Produces cleaner power compatible with sensitive electronics, variable-speed motors, and most modern appliances.
For a full off-grid home or an RV running multiple appliances, a pure sine wave inverter is the better choice when completing a 24V solar panel diagram with an inverter and converter.
Reading a 24V Solar Panel Diagram With Converter, Charger, and Inverter Step by Step
A well-drawn 24V solar panel diagram with converter, charger, and inverter diagram follows a consistent left-to-right or top-to-bottom current flow. This detailed solar wiring reference from the University of Engineering and Technology Peshawar illustrates how current moves from the PV array through each protective and conversion stage.
Stage 1: PV Array to Charge Controller
Panels connect to the charge controller’s PV input terminals in the solar converter charger inverter diagram. A combiner box is used when multiple strings are wired in parallel to consolidate positive and negative leads. Inline fuses or breakers protect each string.
Stage 2: Charge Controller to Battery Bank
The charge controller’s battery output connects directly to the battery bank through a properly sized fuse or circuit breaker. This fuse protects one of the highest-risk sections in the entire 24V solar wiring diagram.
Stage 3: Battery Bank to Inverter in the 24V Diagram
The inverter draws from the battery bank through its own set of short, heavy-gauge cables. A fuse or DC breaker rated to the inverter’s maximum input current is placed as close to the battery positive terminal as possible. Most installers use a busbar or battery terminal block to distribute DC loads cleanly throughout the 24V solar panel diagram with inverter.
Stage 4: Battery Bank to DC-DC Converter
The DC-DC converter taps off the same battery bank—usually via the busbar—and steps 24V down to 12V for DC loads. This branch also requires its own inline fuse sized to the converter’s rated output current, as shown in any complete 24V solar panel diagram with converter and charger.
Stage 5: Inverter AC Output to Load Panel
The inverter’s AC output feeds a small sub-panel or load center where individual circuit breakers distribute power to AC outlets, lighting circuits, and appliances.
Key Component Sizing Reference for a 24V Solar System Diagram
Wiring Best Practices for Your 24V Solar Panel and Inverter Diagram
Getting the wiring right matters as much as choosing the right components. A few principles apply across virtually every 24V solar panel diagram with converter, charger, and inverter diagrams:
- Use the correct wire gauge. Undersized wire creates resistance, heat, and voltage drop. An AWG chart or voltage drop calculator should be used for every cable run, especially the short, high-current cables between batteries and the inverter in the 24V diagram.
- Keep inverter cables short. The cables between the battery bank and the inverter carry the highest current in the system. Even a few extra feet add measurable resistance. Most installers keep this run under 36 inches.
- Label everything. Positive and negative leads, fuse ratings, and component terminals should be clearly labeled. This makes troubleshooting faster and safer across the entire solar converter charger inverter diagram.
- Install a battery monitor. A shunt-based battery monitor placed in the negative cable provides real-time data on state of charge, current draw, and cumulative energy—one of the most useful additions to any off-grid 24V solar system.
If you are still deciding on timing and location for your panels before finalizing the wiring layout, reviewing when to install solar panels can help you coordinate the physical installation with your electrical planning.
Common Mistakes in a 24V Solar Inverter Wiring Diagram
Even experienced DIYers run into avoidable problems when building from a 24V solar panel diagram with a converter, charger, and inverter diagram. These are the most frequent errors:
- Mismatched battery wiring: When wiring multiple batteries in series-parallel configurations, unequal cable lengths cause uneven charging and discharging, which shortens battery life. All inter-battery connections should use identical cable lengths.
- Skipping fuses on every branch: Each branch in the 24V solar wiring diagram—panels to controller, controller to batteries, batteries to inverter, batteries to converter—needs its own overcurrent protection. A single master fuse is not sufficient.
- Ignoring temperature derating: Wire ampacity ratings assume a specific ambient temperature. In hot environments such as attics, engine compartments, or outdoor conduit, wire must be derated, meaning a heavier gauge is required.
- Grounding errors: In the US, most off-grid systems use a negative-grounded configuration. The system ground point should be a single, clearly defined location—typically the negative busbar—connected to a proper earth ground rod.
Maintaining the System Shown in Your 24V Solar Panel Diagram
Once the system is running, periodic maintenance keeps it performing at its rated output. Keeping panels clean is one of the simplest ways to protect energy production; a soft brush designed for solar panel cleaning removes dust, pollen, and debris without scratching the glass surface.
Check all terminal connections every 6–12 months. Vibration, thermal cycling, and corrosion can loosen connections over time, increasing resistance and creating potential hazards throughout the 24V solar panel diagram with converter, charger, and inverter circuit. Torque connections to manufacturer specs and apply a thin layer of corrosion inhibitor to exposed terminals in humid environments.
For those interested in the broader context of solar energy systems, solar panels have been a topic in standardized academic assessments as the technology becomes increasingly integrated into mainstream education and public knowledge.
FAQs
What size inverter do I need for a 24V solar panel diagram with inverter?
Inverter sizing depends on the total wattage of appliances running simultaneously. Add up the wattage of all devices you expect to run at once, then select an inverter rated at least 20–25% above that total to allow for startup surges. A typical off-grid cabin with a refrigerator, lights, and laptop charging typically needs between 1,500W and 3,000W in a standard 24V solar wiring diagram.
Can I connect a 12V appliance directly to a 24V battery bank?
No. Connecting a 12V device directly to a 24V battery bank will likely damage or destroy it. A DC-DC buck converter is the component shown in the 24V solar panel diagram with converter that steps 24V down to a stable 12V output for safe operation of 12V devices and accessories.
What is the difference between a PWM and an MPPT charge controller in a 24V solar diagram?
A PWM controller connects panels directly to the battery and limits power by pulsing the connection on and off. An MPPT controller uses electronics to find the panel’s maximum power point and convert it efficiently to the battery voltage. MPPT controllers typically harvest 15–30% more energy, making them the better fit for a 24V solar panel diagram with charger, converter, and inverter, where higher-voltage panel strings are common.
How many solar panels do I need for a complete 24V solar system diagram?
The number of panels depends on your daily energy consumption, available sun hours, and panel wattage. Divide your daily watt-hour needs by the average peak sun hours in your location, then add 20–25% for system inefficiencies. For example, a 2,000Wh daily load in an area with 5 peak sun hours requires roughly 500W of panels at minimum in the 24V diagram.
Do I need a separate DC-DC converter if my 24V solar panel diagram already includes an inverter?
Yes, in most cases. An inverter converts DC to AC for household appliances but does not produce 12V DC for accessories. If your 24V solar panel diagram with converter, charger, and inverter diagram includes 12V loads—such as LED lighting, fans, or a 12V refrigerator—a dedicated DC-DC converter provides the correct voltage without routing everything through the inverter, which wastes energy on a DC-AC-DC conversion cycle.
Final Takeaways From the 24V Solar Panel Diagram With Converter, Charger, and Inverter
A complete 24V solar panel diagram with converter, charger, and inverter diagram is more than a technical schematic—it is the blueprint for a reliable, safe power system. Understanding how panels feed a charge controller, how the controller protects and charges the battery bank, how a DC-DC converter handles 12V loads, and how the inverter delivers AC power gives you the foundation to plan, build, or evaluate any off-grid or backup solar installation.
The most practical next step is to sketch out your specific component list, run the wire sizing calculations for each cable segment in the diagram, and verify that every branch has appropriate overcurrent protection before purchasing anything. Taking the time to get the 24V solar wiring diagram right before pulling a single wire is the single most effective way to ensure a system that runs safely and efficiently for years.
