Selecting a mailbox involves more than choosing a receptacle for letters; it is an investment in a property’s curb appeal and the security of personal information. Architectural mailboxes are distinguished by their heavy-duty construction, aesthetic versatility, and adherence to strict postal regulations. Whether for a residential renovation or a commercial development, understanding an architectural mailboxes construction diagram is essential for ensuring long-term functionality and compliance.
This guide explores the engineering behind high-quality mailboxes, the materials that define their lifespan, and the technical requirements for a successful installation.
The Anatomy of Quality: Deconstructing the Construction Diagram
When reviewing an architectural mailboxes construction diagram, several key components emerge as critical to the unit’s performance. These diagrams serve as the blueprint for how the mailbox handles physical stress, environmental exposure, and the daily mechanical action of the door and flag.
The Housing and Body
The outer shell, or housing, provides the primary defense against the elements. Most premium architectural models utilize a “wrap-around” design where the top and sides are formed from a single piece of heavy-gauge metal. This reduces the number of seams where moisture can penetrate. In a detailed diagram, you will notice reinforced corners and rolled edges, which add structural rigidity and prevent the metal from warping over time.
Door Mechanisms and Hinges
The door is the most frequently used part of the mailbox. High-end construction diagrams often feature piano hinges—long, continuous hinges that distribute the weight of the door evenly. This prevents the “sagging” common in cheaper models that use small, localized pins. Additionally, magnetic or mechanical latches are engineered to provide a positive “click” feel, ensuring the door remains closed even during high winds.
Weatherproofing and Drainage
A sophisticated construction diagram will highlight the presence of weather stripping or “rain guards.” These are often overhanging lips on the roof of the mailbox that direct water away from the door opening. Furthermore, internal floor ridges or a slightly tapered bottom allow any incidental moisture to settle away from the mail, keeping documents dry during heavy storms.
Material Science in Architectural Mailbox Design
The longevity of a mailbox is dictated by its material composition. Because these units are exposed to UV rays, salt air, and fluctuating temperatures, manufacturers prioritize metals that resist oxidation.
Protective Coatings
Beyond the base metal, the finishing process is a vital part of the construction. Powder coating is the industry standard for architectural mailboxes. Unlike liquid paint, powder coating is electrostatically applied and cured under heat, creating a hard, durable skin that offers superior resistance against chips, scratches, and color fading.
Technical Specifications and USPS Standards
Before referencing an architectural mailboxes construction diagram for a DIY installation, it is necessary to align the plans with the United States Postal Service (USPS) guidelines. The USPS regulates the height and placement of mailboxes to ensure carrier safety and efficient mail delivery.
Height and Setback Requirements
The standard installation height for a curbside mailbox is between 41 and 45 inches from the road surface to the bottom of the mailbox or point of mail entry. This height is specifically designed to allow carriers to reach the box from their vehicle without straining.
The setback—the distance from the curb to the mailbox door—should be 6 to 8 inches. This ensures the mailbox does not interfere with traffic or snowplows while remaining accessible to the postal worker.
Post Construction and Safety
The post is as important as the box itself. The Federal Highway Administration (FHWA) recommends “breakaway” post designs. Heavy-duty steel pipes or massive stone pillars may look impressive, but they can pose a lethal hazard in a vehicle collision. Ideally, a wooden post should be no larger than 4″ x 4″, and a standard steel or aluminum pipe should have a diameter no greater than 2 inches.
Security Features in Modern Architectural Designs
With the rise of identity theft and package “piracy,” architectural mailboxes have evolved to include advanced security measures. These features are often detailed in the construction diagrams of locking models.

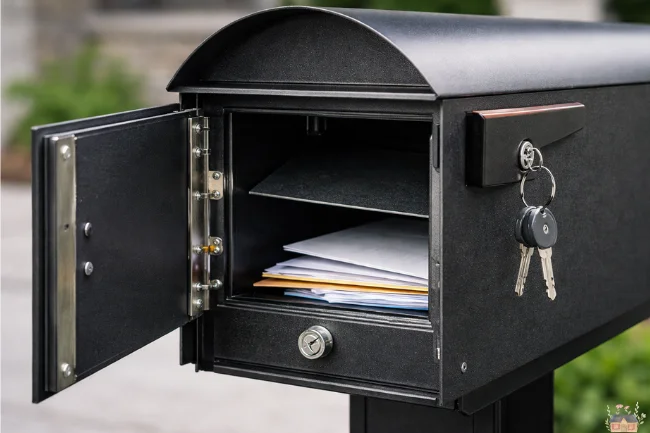

Baffle Systems and Anti-Fish Plates
A secure mailbox uses a baffle system—a slanted internal plate that allows mail to drop into a secure lower compartment but prevents a hand from reaching down through the slot to retrieve it. This “anti-fish” technology is standard in high-security architectural designs intended for residential and small business use.
Locking Mechanisms
The locks used in these units are typically heavy-duty cam locks or deadbolt systems. The construction diagram will show how the lock engages with the frame of the mailbox. In premium models, the locking point is reinforced with a steel plate to prevent prying or “jimmying” the door open.
The Installation Process: From Diagram to Ground
Successful installation requires a balance between aesthetic placement and structural stability. While a diagram provides the dimensions, the execution determines the durability.
1. Excavation and Foundation
For a standard post-mounted architectural mailbox, a hole approximately 24 inches deep is usually required. In regions with freezing temperatures, the hole should ideally reach below the frost line to prevent “heaving,” where the ground pushes the post upward as it freezes.
2. Concrete vs. Direct Burial
While some posts are designed for direct burial in the soil, using a concrete base provides superior stability. A “dry-pour” method—where dry concrete mix is added to the hole and then hydrated—is common, though pre-mixing the concrete ensures a more uniform strength.
3. Leveling and Alignment
During the curing process, it is essential to use a level on at least two sides of the post. Even a slight tilt will be magnified once the heavy architectural mailbox is mounted to the top, potentially causing the door to swing open or closed on its own.

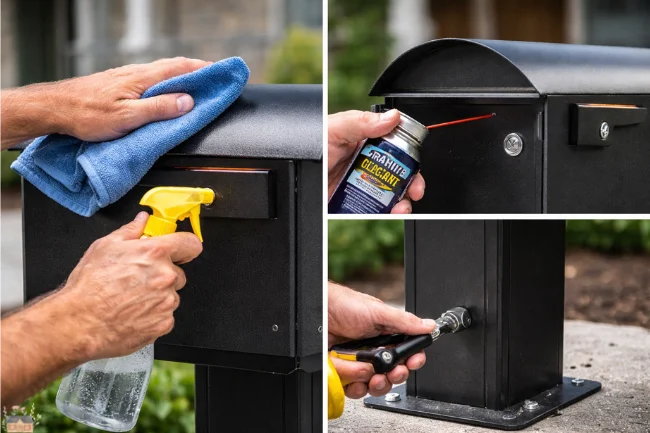

Maintenance for Long-Term Value
Even the most robustly constructed mailbox requires periodic maintenance to preserve its appearance and function.
-
Cleaning: Wash the exterior with a mild detergent and water at least twice a year. This is especially important in coastal areas where salt buildup can degrade even the best powder-coated finishes.
-
Lubrication: Apply a dry graphite lubricant to the lock and hinges annually. Avoid using WD-40 or oil-based lubricants, as these can attract dust and grime, eventually gumming up the mechanism.
-
Hardware Inspection: Periodically check the mounting bolts that connect the mailbox to the post. Vibrations from nearby traffic can loosen these over time.
Designing for Visual Harmony
Architectural mailboxes are often the first thing a visitor sees. When choosing a design, consider the architectural style of the primary structure.
-
Mid-Century Modern: Look for clean lines, bold colors, and sans-serif lettering.
-
Craftsman/Traditional: Seek out cast aluminum models with oil-rubbed bronze finishes and textured surfaces.
-
Contemporary: Minimalist stainless steel units with recessed handles and hidden hinges complement modern glass and concrete homes.
The goal is for the mailbox to look like an intentional extension of the home’s design rather than an afterthought.
Frequently Asked Questions
What gauge of steel is best for an architectural mailbox?
Most high-quality architectural mailboxes use 16-gauge to 20-gauge steel. A smaller gauge number means the metal is thicker and stronger. For maximum durability and security, 16-gauge steel is preferred as it is much harder to dent or pry than the thinner 22-gauge steel found in economy models.
Can I install a locking architectural mailbox on my existing post?
In many cases, yes. Most architectural mailboxes are designed with universal mounting hole patterns. However, because these units are often heavier than standard boxes, you must ensure your existing post is structurally sound and not suffering from wood rot or metal fatigue. If the post wobbles, it should be replaced.
Are there specific USPS colors I must use?
The USPS does not mandate specific colors for residential mailboxes, but they do require that the flag be a contrasting color, usually fluorescent orange or red. This ensures the carrier can easily see when there is outgoing mail. For the mailbox body, neutral tones or finishes that match the home are perfectly acceptable.
How do I handle a mailbox that keeps getting hit by snowplows?
While you must adhere to the 6 to 8-inch setback, you can minimize damage by choosing a “cantilever” post design. This allows the post to be set further back from the road while the mailbox hangs forward at the correct distance. Using a heavy-duty architectural model made of reinforced steel also provides better resistance to the pressure of heavy snow.
Do I need a permit to install a new mailbox?
Generally, you do not need a local building permit for a standard curbside mailbox. However, if you are building a large masonry or brick structure to house the mailbox, you should check with your local municipality and Homeowners Association (HOA). Some areas have strict rules regarding “non-breakaway” structures near the roadway for safety reasons.
Closing Insights
Investing in a high-quality mailbox is a practical way to enhance a property’s exterior while securing daily correspondence. By studying an architectural mailboxes construction diagram, property owners can better appreciate the engineering required to withstand years of weather and use. From the selection of rust-resistant materials like aluminum and stainless steel to the precision of a piano hinge, every detail contributes to the unit’s longevity.
When moving forward with a project, always prioritize USPS compliance and road safety. A well-installed, architecturally sound mailbox not only serves a vital function but also stands as a durable symbol of a well-maintained home.
