Learning how to insulate a garage door starts with understanding the basics: it involves adding a thermal barrier — typically foam board, batt insulation, or reflective film — to the interior panels to reduce heat transfer, lower energy bills, and improve comfort. When done correctly, it can also reduce noise and protect stored items from temperature extremes. This guide covers everything needed to get the job done right.
Why Garage Door Insulation Matters
An uninsulated garage door is one of the largest thermal weak points in a home. In cold climates, an attached garage without proper insulation can drop well below freezing, putting strain on water pipes, HVAC systems, and anything stored inside. In hot climates, radiant heat through a metal door can push garage temperatures past 130°F during summer.
Beyond temperature control, insulation adds a layer of soundproofing — a meaningful benefit for homeowners who use their garage as a workspace or gym, or who have living spaces adjacent to the garage. Many homeowners are surprised to find that a weekend DIY project can noticeably reduce street noise and the rumble of the door itself.
If the garage door operates with a motorized opener, insulation can also reduce mechanical wear over time by dampening the vibration of each open-and-close cycle. For those interested in smart garage door systems, pairing insulation upgrades with a smart camera garage door opener creates a more energy-efficient and secure setup overall.
Types of Garage Door Insulation
Choosing the right material is a key part of figuring out how to insulate a garage door effectively. Here are the three most common insulation options and where each performs best.
- Foam board (rigid polystyrene or polyisocyanurate) is the most popular choice for DIYers. It is lightweight, easy to cut with a utility knife, and fits cleanly into standard steel panel recesses. Polyisocyanurate foam, sometimes called polyiso, offers the highest R-value per inch among foam boards.
- Batt insulation — particularly foil-faced fiberglass batts — is a good choice for doors with deeper recesses. It is flexible and can be cut to fit, though it requires a vapor barrier in humid climates to prevent moisture accumulation.
- Reflective foil barriers work best in hot climates where radiant heat from sunlight is the primary concern. They do not perform as well in cold climates on their own, but can be layered with foam for year-round benefit.
What You Will Need
Gathering materials before starting saves time and unnecessary trips to the hardware store. Here is a standard supply list for a foam board insulation project on a two-car steel door:
- Rigid foam board insulation (polystyrene or polyiso)
- Utility knife and straight edge or circular saw
- Measuring tape
- Foil tape or construction adhesive rated for foam
- Retaining clips or double-sided tape (if not using adhesive)
- Safety glasses and gloves
- Marker or pencil
For a detailed walkthrough of a budget-friendly approach, this step-by-step Instructables guide provides helpful visual reference for first-time installers.
How to Insulate a Garage Door: Step-by-Step

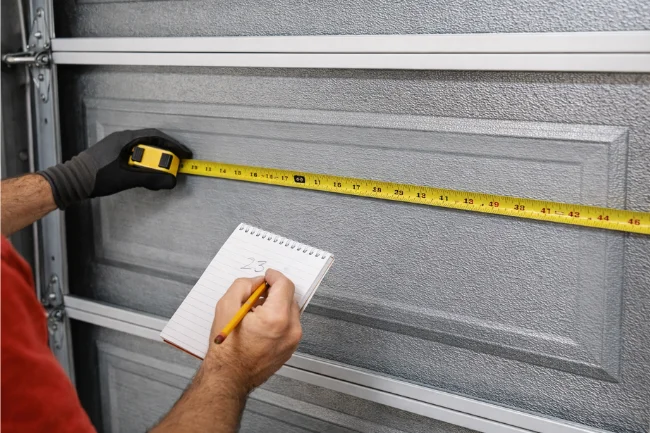

Step 1: Measure Each Panel Carefully
Most residential garage doors consist of four to six horizontal panels. The recessed area inside each panel is what the insulation fills. Using a measuring tape, record the height and width of each recessed section. Do not assume all panels are identical — small differences are common, especially near the top and bottom panels.
Write measurements on a notepad or directly on the foam board before cutting.
Step 2: Cut the Insulation to Size
Lay the foam board on a flat surface. Using a straight edge and a utility knife, score the board firmly along the marked line, then snap it clean. For polyiso boards, a second scoring pass usually produces a cleaner break. If using a circular saw, work outdoors or in a ventilated space — foam dust is lightweight and spreads quickly.
Cut each piece roughly ¼ inch smaller than the panel recess on each side. This slight gap allows the panel to flex without cracking the insulation as the door opens and closes.
Step 3: Secure the Insulation Panels
There are two reliable methods for securing foam to the door:
- Retaining clips — Most garage door insulation kits include plastic retaining clips that press into pre-punched holes in the door panels. Slide the insulation piece under the clip tabs to hold it in place. This method requires no adhesive and allows easy removal if needed.
- Construction adhesive — Apply a few small dabs of foam-compatible construction adhesive (avoid solvent-based products that dissolve foam) to the back of the insulation piece. Press it firmly into the recess and hold for 30–60 seconds. Seal edges with foil tape for a cleaner finish and to prevent air infiltration.
Avoid applying adhesive in a continuous bead around the perimeter. The door panels flex during operation, and a rigid adhesive bond can cause the foam to crack or peel over time.
Step 4: Work from Bottom to Top
Start with the bottom panel and work upward. This approach makes it easier to adjust for any slight variations in panel size and ensures the top panel — which is typically narrower — gets an accurately trimmed piece last.
Step 5: Check Door Balance After Installation
Insulation adds weight to the door. Most standard torsion spring systems can handle the added load of foam board without recalibration, but it is worth testing the balance after finishing. Disconnect the automatic opener and manually lift the door to waist height, then release it. A properly balanced door should stay in place or rise slightly. If the door drops quickly, the spring tension may need adjustment — a task best handled by a garage door technician.
Sealing the Gaps Around the Door
When working through how to insulate a garage door, insulating the panels themselves is only part of the job. Gaps around the door perimeter can allow drafts, pests, and moisture to enter — undercutting much of the thermal benefit.

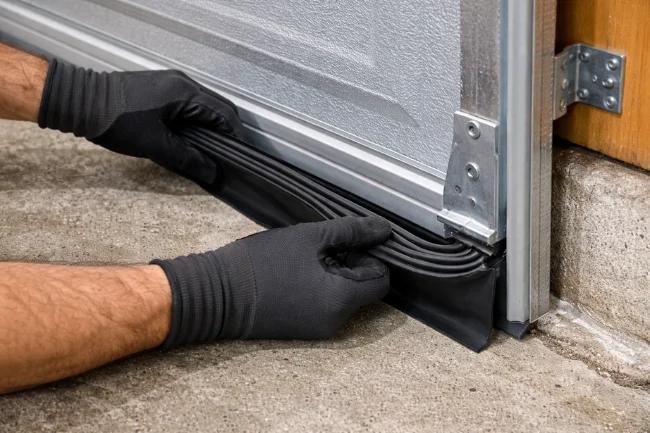

Check and replace the bottom door seal if it shows signs of cracking or compression. Weatherstripping along the sides and top of the door frame is equally important and can be replaced with adhesive-backed foam tape or fitted vinyl strips available at most hardware stores.
Moisture management is another consideration. If the garage regularly sees temperature swings that cause condensation, addressing the root cause — such as improving ventilation or sealing cracks in the concrete floor — will extend the life of both the insulation and the door hardware. Persistent moisture can cause similar surface damage to what homeowners deal with on wood floors; for guidance on handling those kinds of water-related issues, removing water stains from wood follows a comparable logic of early identification and targeted treatment.
Common Mistakes to Avoid
- Skipping the panel recess measurement. A foam cut too wide will bow and pop out as the door cycles. Foam cut too narrow leaves gaps that reduce effectiveness.
- Using solvent-based adhesives. Many common construction adhesives contain solvents that dissolve polystyrene foam on contact. Always check the label for foam compatibility.
- Neglecting the door balance check. An overloaded spring system can fail prematurely or cause the automatic opener to struggle.
- Insulating without addressing door hardware issues. If the rollers are worn, noisy, or prone to popping out of the track, insulation adds weight that can worsen those problems. Addressing issues like a garage door roller popping out before starting an insulation project keeps the entire system operating smoothly.
Expected Results and Realistic Benefits
Understanding how to insulate a garage door also means setting realistic expectations for the outcome. A properly insulated garage door with an R-value between R-8 and R-12 can reduce temperature extremes significantly. In a typical attached garage, effective insulation may keep the space 10–20°F warmer in winter and noticeably cooler in summer compared to an uninsulated door.
Energy savings vary depending on how well the rest of the garage is sealed, the climate zone, and whether the space is conditioned. In general, the project pays for itself over one to two heating seasons in colder climates, and often faster in regions with high summer cooling costs.
Sound reduction is an immediate and noticeable benefit — especially on older steel doors that rattle during operation.
Frequently Asked Questions
Can I insulate any type of garage door?
Most steel, wood, and aluminum garage doors can be insulated using foam board or batt insulation. Single-layer steel doors are the most common candidates for DIY insulation. Doors with very thin or complex panel designs may require custom-cut foam or professional installation to achieve a secure fit.
What R-value should a garage door have?
For an attached garage in most U.S. climate zones, an R-value between R-8 and R-18 is generally recommended. Colder climates like the upper Midwest benefit from higher R-values, while mild climates may find R-6 sufficient. Check local energy codes or the Department of Energy’s climate zone map for region-specific guidance.
How long does it take to insulate a garage door?
A standard two-car garage door with four to six panels typically takes two to four hours for a DIY installer working with foam board. Batt insulation projects may take slightly longer due to additional cutting and fitting. Drying or curing time for adhesive adds a few hours before the door should be cycled regularly.
Does garage door insulation require professional installation?
Most DIY-friendly insulation methods require only basic tools and no specialized skills. Pre-cut garage door insulation kits are widely available and include all necessary components. Professional installation is worth considering for custom doors, high-performance polyurethane foam injection systems, or situations where door balance adjustments are needed.
Will insulating the garage door make it too heavy for the opener?
Standard foam board insulation adds relatively little weight — typically 3 to 8 pounds for a full door. Most residential garage door openers and torsion spring systems handle this without issue. However, it is always advisable to test door balance manually after installation and consult a technician if the door shows signs of being overloaded.
Wrapping Up
Knowing how to insulate a garage door is a practical skill that pays off quickly in comfort, energy savings, and noise reduction. The process is manageable for most DIYers with basic tools, a careful approach to measuring, and the right insulation material for the climate.
Start with a foam board kit if this is a first insulation project — they are widely available, forgiving to work with, and deliver reliable results. From there, sealing the perimeter weatherstripping and checking door hardware will round out a well-insulated, smoothly operating garage.
