Lights Flicker When AC Turns On: Causes & Fixes

Lights flicker when AC turns on — that’s the exact moment most homeowners either shrug it off or start quietly panicking. I’ve been on both sides of that reaction, and after researching this issue from both an electrical engineering standpoint and a homeowner’s practical perspective, I can tell you it almost always comes down to one of a handful of root problems — some minor, some urgent. This guide walks you through exactly what’s happening inside your electrical system, how to read the warning signs, and when to call a licensed electrician before the problem escalates.

---

Why Lights Flicker When AC Turns On: The Science Behind It

Your air conditioner is one of the largest electrical loads in your home. When the compressor motor starts up, it draws a surge of current — often three to seven times its normal running current — for a fraction of a second. This is called inrush current or startup current, and it’s completely normal behavior for large motors.

The problem isn’t the surge itself. It’s what that surge does to the rest of your electrical system. When the AC draws that sudden spike of power, it causes a momentary voltage drop across your home’s circuits. Your lights, which are voltage-sensitive, respond to that drop by dimming or flickering. The whole event typically lasts less than a second.

According to the U.S. Department of Energy and the National Electrical Manufacturers Association (NEMA), momentary voltage fluctuations under 5% are generally considered acceptable and harmless. The concern begins when those fluctuations exceed that threshold, happen repeatedly, or are accompanied by other symptoms like tripped breakers, burning smells, or humming sounds.

---

The Most Common Causes When Lights Flicker When AC Turns On

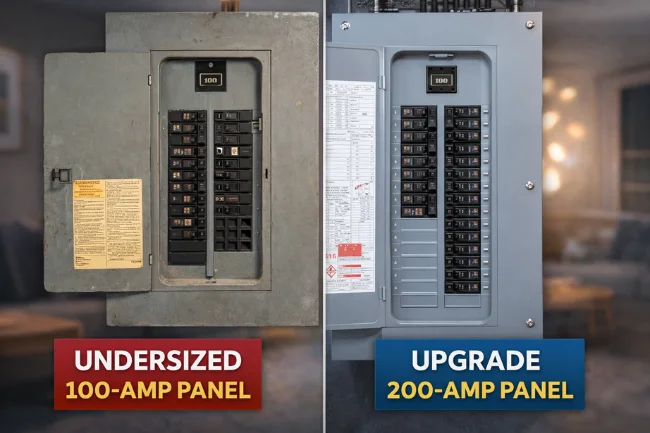

1. An Undersized or Aging Electrical Panel

This is, by far, the most frequent culprit I’ve come across. If your home was built before the 1990s and still has its original electrical panel, there’s a real chance it wasn’t designed to handle the demands of modern HVAC systems.

A panel that’s undersized — say, a 100-amp service feeding a home that really needs 200 amps — will struggle to supply startup current to a large AC unit without affecting other circuits. Lights flicker when AC turns on because those circuits can’t maintain a stable voltage during the compressor’s startup surge.

Signs your panel may be the issue:

• Your home has 100-amp service or less
• The panel is over 25–30 years old
• You notice flickering across multiple circuits simultaneously
• Breakers trip occasionally when the AC starts

2. Loose or Corroded Wiring Connections

Loose wiring is more dangerous than it sounds. A connection that has worked itself loose — at the panel, at a junction box, or even at the AC disconnect — creates resistance at that point. When high startup current passes through that resistance, you get a voltage drop that ripples through connected circuits. This is one of the most overlooked reasons lights flicker when AC turns on, and also one of the most hazardous.

Corrosion plays the same role. Aluminum wiring, which was common in homes built between the mid-1960s and mid-1970s, is particularly susceptible to oxidation at connection points. The National Fire Protection Association (NFPA) has documented that homes with aluminum wiring have a significantly elevated risk of electrical fire if connections are not properly maintained with anti-oxidant compound and aluminum-rated devices.

3. A Weak or Failing AC Capacitor

The capacitor in your air conditioner serves as a kind of energy reservoir for the compressor and fan motors. It stores electrical charge and releases it during startup to help the motor get up to speed quickly, reducing the duration and magnitude of the inrush current.

When a capacitor starts to fail, the motor takes longer to reach operating speed, which means it draws that high startup current for a longer period. If lights flicker when AC turns on and the dimming lasts a full second or two instead of a brief flash, a failing capacitor is near the top of my list of suspects.

An HVAC technician can test capacitor health with a capacitance meter in minutes, and replacement typically costs $150–$400, depending on the unit.

4. Overloaded Circuits

If your AC unit shares a circuit with other high-draw appliances — or if it’s running on a circuit that wasn’t originally designed for it — lights flicker when AC turns on every single cycle. Air conditioners should always be on dedicated circuits, sized according to the equipment’s amperage requirements.

The same principle applies at the panel level. If too many high-draw appliances are running simultaneously on an underpowered service, the voltage drop during AC startup will be more severe.

5. Utility Supply Issues

Not all flickering problems originate inside your home. The power coming in from your utility provider can have its own voltage irregularities, especially during peak demand periods in summer. If your neighbors are running their AC units at the same time, the local transformer serving your block may be working at or near capacity.

You can often tell this is the issue if flickering happens even when your AC isn’t running — for example, when a large appliance elsewhere in the neighborhood starts up. Contact your utility company if you suspect this is the cause; they can check transformer load and line voltage at your meter.

---

How Serious Is It When Lights Flicker When AC Turns On?

Not all flickering is equal. Here’s a practical breakdown to help you assess where your situation falls on the spectrum.

Flickering Severity Comparison Table

---

What You Can Do Right Now When Lights Flicker When AC Turns On

Check Your Panel Size First

If you’re not sure what service size your home has, look at the main breaker in your electrical panel. It will be labeled with an amperage rating — 100A, 150A, or 200A are the most common. If you have a 100-amp service and a larger home with multiple AC units or heavy appliances, upgrading to 200-amp service is often a necessary investment, not just a luxury.

Have Your AC Capacitor Tested Annually

I recommend making capacitor testing part of your annual HVAC tune-up. It’s a quick test that can save you from a situation where your compressor strains through a weak startup every cycle — which also shortens the compressor’s lifespan, turning a $300 capacitor fix into a $2,000–$4,000 unit replacement.

Consider a Soft Starter for Your AC

A soft starter (also called a hard start kit) is a device that limits the inrush current during AC startup. It stages the startup process, bringing the motor up to speed gradually rather than letting it draw its full startup current all at once. This reduces voltage drop dramatically and can completely eliminate the issue when lights flicker when AC turns on due to a current surge — provided deeper wiring problems aren’t involved.

Soft starters typically cost $50–$150 for the part, plus installation. Products like the Micro-Air EasyStart are popular aftermarket options with strong reviews from both HVAC technicians and homeowners.

Don’t Ignore Warm Outlets or Burning Smells

If lights flicker when AC turns on and you also notice any outlet, switch plate, or the area around your panel feels warm to the touch — or if you detect a burning or metallic smell — stop reading and call a licensed electrician today. These are not symptoms to diagnose yourself. Warm wiring under load is a recognized precursor to electrical fires.

---

When to Call a Licensed Electrician Because Lights Flicker When AC Turns On

There’s a clear line between things a homeowner can reasonably monitor and situations that require a professional. Based on my research and guidelines from organizations like the NFPA and the International Association of Electrical Inspectors (IAEI), these situations warrant a professional inspection:

• Lights flicker when AC turns on, and it has become progressively worse over weeks or months
• Flickering is occurring on circuits unrelated to your AC
• Any burning smell, warm switch plates, or discoloration around outlets
• Tripped breakers occurring alongside flickering
• Your home has aluminum wiring from the 1960s–1970s
• Your electrical panel is a recalled brand (Federal Pacific, Zinsco, and Pushmatic panels have well-documented safety issues)
• You’re planning to add another AC unit or significantly increase your electrical load

A licensed electrician will perform a load calculation, inspect your panel, check connections at key points, and measure actual voltage under load. In my view, this is one of those situations where the inspection cost — typically $100–$300 — is money well spent.

---

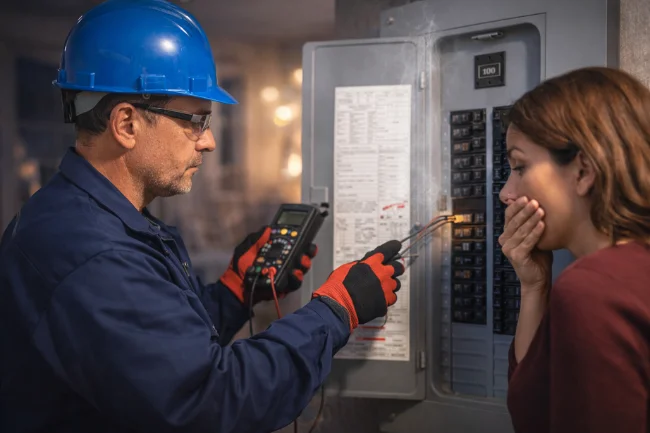

What an Electrician Checks When Lights Flicker When AC Turns On

When a licensed electrician evaluates a home where lights flicker when AC turns on, they work through a systematic checklist. Understanding this process can help you have a more productive conversation and know whether you’re getting a thorough evaluation.

They’ll start at the meter and service entrance, verifying that the utility is delivering proper voltage (nominally 240V across both legs for a split-phase residential service). From there, they’ll inspect the main panel connections, looking for signs of heat damage, arcing, or corrosion. They’ll check the AC’s dedicated circuit — breaker size, wire gauge, and connection integrity — and may use a clamp meter to measure actual current draw during startup. Finally, they may check the voltage at the light fixtures themselves to confirm how significant the drop actually is.

This kind of systematic approach usually takes 1–3 hours and gives you a clear picture of whether you’re looking at a simple fix or a larger upgrade.

---

The Long-Term Cost of Ignoring It When Lights Flicker When AC Turns On

Ignoring the problem is rarely the right call. Beyond the inconvenience, repeated voltage fluctuations can shorten the lifespan of sensitive electronics — televisions, computers, smart home devices — by stressing their internal power supplies.

More importantly, the underlying causes — loose connections, overloaded panels, degraded wiring — don’t get better on their own. They get worse. A loose connection that causes mild flickering today can arc under load tomorrow, and electrical arcing is one of the leading causes of residential fires in the United States. The U.S. Fire Administration (USFA) reports that electrical fires cause approximately 46,700 home fires per year, resulting in over $1.5 billion in property losses.

That’s not meant to alarm you into unnecessary spending. Most cases where lights flicker when AC turns on are benign and inexpensive to fix. But it is meant to underscore the point that this is a symptom worth investigating, not dismissing.

---

Conclusion

Lights flicker when AC turns on for one of five reasons: startup inrush current, an aging or undersized panel, a failing capacitor, loose wiring connections, or an overloaded circuit. Most of these are diagnosable and fixable without major expense — but they do require attention.

My recommendation: start by having your AC capacitor inspected at your next HVAC tune-up, check your panel size, and pay close attention to whether the flickering is getting worse or is accompanied by any other symptoms. If anything on the “urgent” list above applies to your situation, skip the monitoring phase and call a licensed electrician now.

Your electrical system is telling you something. It’s worth listening.

---

FAQs

1. Is it normal for lights to flicker when AC turns on?

A very brief, subtle dimming at startup is common and usually harmless — it’s caused by the compressor’s inrush current. Prolonged or frequent flickering, however, warrants further investigation.

2. Can it damage my electronics when lights flicker when AC turns on?

Repeated voltage fluctuations can stress the power supplies in sensitive electronics over time. A whole-home surge protector or a dedicated UPS for critical devices can help mitigate this risk.

3. How much does it cost to fix the panel when lights flicker when AC turns on?

Upgrading from 100-amp to 200-amp service typically costs $1,500–$4,000, depending on your location and the complexity of the work. Fixing loose connections within an existing panel is considerably cheaper.

4. Will a hard start kit fix it when lights flicker when AC turns on?

A soft starter significantly reduces startup current, which often eliminates the flickering caused by inrush alone. It won’t fix underlying issues like loose wiring or an undersized panel.

5. How do I know if lights flicker when AC turns on or if it’s something else causing it?

If the flickering happens specifically and consistently when your AC compressor starts, the AC is almost certainly the trigger. If flickering is random or occurs without any obvious cause, the issue may be in your wiring, panel, or utility supply.
