If you’ve ever renovated a bathroom or watched one being built from scratch, you’ve probably heard a plumber throw around the phrase “rough-in.” It sounds technical, but once you understand what it means and why it matters, you’ll realize it’s one of the most critical steps in any bathroom project. Getting your bathroom plumbing rough-in right is what separates a smooth installation from a costly, headache-filled redo — and I’ve seen both sides of that equation play out on real job sites.
In this guide, I’ll walk you through what rough-in plumbing actually means, why precise measurements are non-negotiable, and what the standard dimensions are for every major bathroom fixture. Whether you’re building new or remodeling, this is the foundation you need to get right before a single tile goes down.
What Is a Bathroom Plumbing Rough-In?

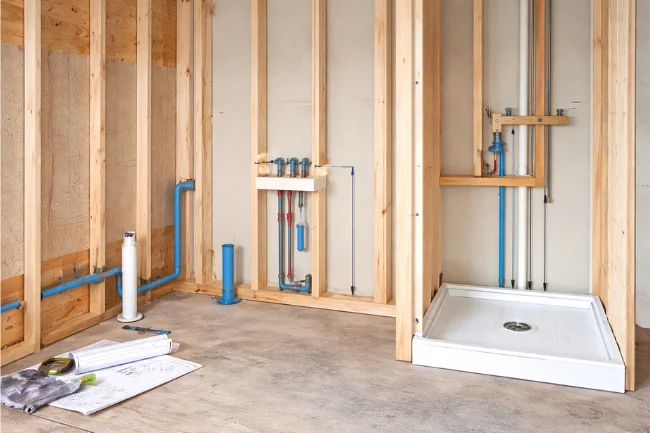

A bathroom plumbing rough-in refers to the phase of construction where all the supply lines, drain pipes, and vent stacks are installed inside the walls and floors — before any drywall, tile, or fixtures go in. At this stage, you’re setting the skeleton of your entire plumbing system.
Think of it this way: once your walls are closed up and your tile is down, moving a drain, even a few inches, could mean jackhammering your floor and ripping out walls. That’s why getting the rough-in right isn’t just about convenience — it’s about protecting your budget and your timeline.
The rough-in phase typically happens after the framing is complete but before any finishing work begins. During this window, your plumber installs stub-outs (the pipe ends that will eventually connect to fixtures), sets drain locations, and positions vent lines that run up through the roof to prevent sewer gas buildup.
According to the International Plumbing Code (IPC), all rough-in installations must comply with local building codes regarding pipe sizing, slope, and clearance — and inspections are required before walls are closed. (Source: International Plumbing Code, 2021 Edition)
Why Accurate Rough-In Measurements Are Critical
I’ve seen what happens when plumbers or contractors rush through this phase without double-checking dimensions. The toilet ends up too close to the wall, the vanity won’t fit, or the shower drain is off-center. These aren’t cosmetic problems — they’re structural ones that require expensive corrections.
Here’s why accuracy during the bathroom rough-in process is non-negotiable:
- Fixture compatibility: Every toilet, sink, and tub is designed around standard rough-in measurements. If your drain is even 2 inches off, you may not be able to use the fixture you’ve already purchased.
- Code compliance: Local building inspectors check clearances and pipe placements during the rough-in inspection. Failing inspection adds delays and additional labor costs.
- Finish work alignment: Tile patterns, vanity placement, and wall tile all depend on knowing exactly where pipes exit the wall or floor. A misaligned stub-out throws off the entire visual layout of the room.
- Long-term function: Drain slopes that are even slightly off can cause slow drainage, standing water, and eventually pipe blockages. The standard slope for drain lines is 1/4 inch per foot — not a guideline, but a requirement per the IPC.
Standard Rough-In Dimensions for Bathroom Fixtures
Toilet Rough-In Dimensions: The Most Unforgiving Measurement
The toilet is where most plumbing rough-in mistakes happen, and it’s also the most expensive to correct. The standard toilet rough-in measurement is 12 inches from the center of the toilet flange to the finished wall behind the toilet. However, older homes — particularly those built before the 1970s — sometimes have 10-inch rough-ins, and some specialty layouts call for 14-inch rough-ins.
When I’m planning a toilet installation, I always verify the rough-in distance before ordering the toilet, because these units are typically non-returnable once purchased.
Key toilet rough-in measurements:
- Flange to finished wall (standard): 12 inches
- Flange to finished wall (older or specialty homes): 10 or 14 inches
- Water supply line height from floor: 7 inches
- Water supply line offset from toilet centerline: 6 inches to the left
- Minimum side clearance from toilet centerline to any wall: 15 inches
- Minimum front clearance from toilet bowl to facing wall: 24 inches (per IPC)
Sink and Vanity Rough-In Dimensions: Getting the Supply Lines Right
Sink rough-ins are a bit more flexible than toilets, but they still need to be accurate relative to the vanity or pedestal you’re installing. The sink plumbing rough-in determines both drainage and how your hot and cold supply lines emerge from the wall.
Key sink rough-in measurements:
- Drain center height from finished floor: 18 to 20 inches
- Hot and cold supply line spread: 8 inches apart (center to center)
- Supply line height from finished floor: 21 inches
- Standard vanity height (countertop to floor): 31 to 34 inches
- Minimum clearance in front of sink: 20 inches
- Side clearance from sink centerline to sidewall: 4 inches minimum
If you’re planning a vessel sink or a wall-mounted lavatory, these measurements shift — so always cross-reference the manufacturer’s rough-in specifications before running your supply lines.
Shower Rough-In Dimensions: Valve Height Changes Everything
Shower rough-ins involve both the drain and the valve assembly, and getting the valve height right has a real impact on daily comfort. Too low and you’re hunching over to adjust the temperature; too high and it becomes awkward for shorter users. This is one area where I always recommend going by the book rather than guessing.
Key shower plumbing rough-in measurements:
- Drain location: centered in the shower floor
- Drain pipe diameter: 2 inches minimum
- Shower valve height from finished floor: 38 to 48 inches (48 inches is most common for adult users)
- Showerhead outlet height from finished floor: 72 to 78 inches
- Minimum shower interior dimensions: 30 x 30 inches (per IPC), though 36 x 36 inches is strongly recommended for comfort
- Shower niche blocking: should be framed between studs before the rough-in phase is complete
Bathtub Rough-In Dimensions: Drain Position Drives Everything
Bathtub rough-ins revolve around the drain location and the faucet stub-outs. Unlike showers, bathtubs have a fixed drain position relative to the tub itself, so you need to know exactly which tub you’re installing before running any bathtub plumbing rough-in pipes.
Key bathtub rough-in measurements:
- Drain outlet distance from finished wall: 14 to 17 inches (varies by tub model)
- Faucet supply stub-out height from finished floor: 20 inches
- Tub spout height from finished floor: 4 inches above tub rim (approximately 24 inches from floor)
- Minimum clear floor space along tub’s front edge: 30 inches
- Overflow drain placement: determined by the tub manufacturer’s specifications
Bathroom Rough-In Dimensions: Quick Reference Comparison Table
| Fixture | Drain Location | Supply Line Height | Key Clearance Requirement |
|---|---|---|---|
| Toilet | 12″ from center of flange to finished wall | 7″ above floor; 6″ left of centerline | 15″ side clearance; 24″ front clearance |
| Sink/Vanity | 18–20″ above finished floor | 21″ above floor; 8″ apart (hot & cold) | 20″ front clearance; 4″ from sidewall |
| Shower | Centered in shower base | Valve: 38–48″; Head: 72–78″ above floor | 30″ x 30″ minimum interior (36×36 recommended) |
| Bathtub | 14–17″ from finished wall | 20″ above floor (faucet); spout ~4″ above rim | 30″ clear along front edge |
Tips for a Precise Bathroom Plumbing Rough-In
Always Measure From Finished Surfaces — Not Studs
This is the single most common bathroom rough-in mistake I see — and it’s an expensive one. When you measure from bare studs without accounting for drywall thickness (typically 1/2 inch) or tile and backer board (which can add another 3/4 to 1 inch), your stub-outs end up in the wrong position relative to the finished wall.
Always confirm with your tile contractor or finish carpenter exactly how much material is going on the walls and floors before finalizing your rough-in locations.
Account for the Full Fixture Footprint Before Roughing In
It’s not enough to position the drain correctly — you also need to make sure the entire fixture fits in the space. That means accounting for the toilet tank depth, the vanity cabinet dimensions, the tub apron width, and any door swing clearance.
Before roughing in, I lay out the full floor plan with actual fixture dimensions pulled from manufacturer spec sheets. This eliminates surprises once the fixtures arrive on site.
Use a Plumber’s Template for Accuracy
For toilets especially, a plumber’s template — a cardboard or printed layout showing the exact flange location, bolt positions, and clearances — can save you from costly rough-in plumbing misalignments. Many toilet manufacturers include these in the box, and they’re worth using every time.
Slope Your Drain Lines Correctly
Horizontal drain lines need a consistent fall of 1/4 inch per linear foot toward the main stack. Too little slope and waste doesn’t drain properly; too much slope and water rushes past solids, leaving them behind in the pipe. Use a level during installation and don’t estimate.
Get Your Rough-In Inspection Done Before Closing Walls
This seems obvious, but some contractors skip or delay the rough-in inspection to save time. If a code violation is caught after drywall goes up, you’re looking at significant rework. Schedule the inspection, pass it, then proceed with finishing.
Common Bathroom Rough-In Mistakes That Lead to Costly Rework
Beyond the basics, a few recurring errors cause the most trouble on real job sites:
- Ignoring local code amendments: The IPC and UPC are model codes, but your municipality may have amendments. Always confirm local requirements with your building department before starting your bathroom plumbing rough-in.
- Forgetting vent stack connections: Every fixture drain needs a vent. Missing or improperly sized vents cause gurgling drains and allow sewer gases into the living space — a health and safety issue, not just a nuisance.
- Using the wrong pipe material: Most modern residential plumbing uses PVC or ABS for drain lines and CPVC or PEX for supply lines. Mixing incompatible materials or using the wrong type for your application can lead to leaks and code violations. (Source: Uniform Plumbing Code, 2021 Edition)
- Not accounting for access panels: Whirlpool tubs and some shower valves require access panels for future maintenance. These need to be planned during the rough-in phase, not discovered afterward.
Conclusion: A Solid Rough-In Makes Everything Else Easier
A well-executed bathroom plumbing rough-in is the invisible backbone of every great bathroom. Nobody sees the pipes in your walls, but everyone experiences the results — a toilet that flushes cleanly, a shower that drains fast, a sink that’s perfectly centered in its vanity.
Taking the time to measure accurately, work from finished surfaces, follow code requirements, and plan for the full fixture dimensions means your installation day goes smoothly — and your finished bathroom performs exactly as it should for years to come.
If you’re planning a bathroom project, consult with a licensed plumber who knows your local code requirements before breaking ground. A few hours of professional planning during the rough-in phase can save weeks of costly rework once the tile is down.
Frequently Asked Questions
1. What tools do I need to complete a bathroom plumbing rough-in?
You’ll need a tape measure, pipe cutter, PVC primer and cement, adjustable wrench, drill, level, Teflon tape, and standard pipe fittings. A laser level is especially helpful for maintaining a consistent drain slope across long runs.
2. How long does a standard bathroom plumbing rough-in take?
Most standard bathroom rough-ins take one to three days, depending on whether it’s new construction or a remodel, the complexity of the layout, and the number of fixtures being installed.
3. Can I modify my bathroom rough-in after the walls and floors are finished?
Yes, but it’s disruptive and costly. Accessing buried pipes typically requires cutting open drywall or tile, and sometimes concrete, which is exactly why accurate rough-in planning before finishing is so important.
4. How does the local building code affect bathroom plumbing rough-in requirements?
Local codes govern everything from minimum clearances to pipe diameter, vent sizing, and required inspection points. Always pull permits and have your rough-in inspected before closing walls — failing to do so can create complications when selling your home.
5. What is the most common rough-in measurement mistake homeowners make?
Measuring from the unfinished stud wall rather than the finished wall surface is the most frequent error in any bathroom plumbing rough-in. It throws off all fixture alignments and can mean the difference between a toilet that fits properly and one that doesn’t clear the tank lid.
